UHF ROOM ( MEETING ) CONVERSATION MESSAGE TRANSMITTERS

MANUAL

MANUAL

MANUAL

1. Can transmit talking ( meeting, negotiating, room ) conversation messages through UHF frequency ( between 350 - 415MHz ).
2. Crystal  controlled, narrow bandwidth.
3. The output power is about 6mW.
4. The transmitting range is about 500 - 1000 meters in open area.
5. The TA-BM6210 can be remotely monitored the room messages by making a call to the cellular phone from even few ten thousands miles away.

UHF ROOM ( MEETING ) CONVERSATION MESSAGE RECEIVER

1. Receive both VHF & UHF bands.
2. Walkman design - good imitation for monitoring.
3. Earphone Jack with Earphone Set.

1. VHF Bands: variable between 110 to 130MHz.
2. UHF Bands: 3 channels ( between 350 - 410MHz ).
3. UHF Bandwidth: lower than 5KHz ( narrow band; crystal controlled ).
4. PLL design UHF frequencies.
5. Extendible Rod Antenna.
6. Earphone Jack: 3.5mm in diameter.

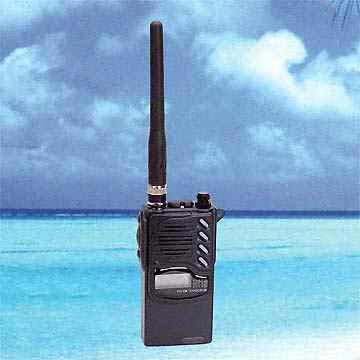

1. Receive UHF bands ( 16 channels ).
2. Walkie Talkie design - good imitation for monitoring.
3. Earphone Jack with Earphone Set.
4. Volume Control.

1. UHF Bands: 16 channels ( between 390 - 440MHz ).
2. UHF Bandwidth: lower than 5KHz ( narrow band; crystal controlled ).
3. PLL design UHF frequencies.
4. Earphone Jack: 3.5mm in diameter.
