WIRELESS A/V TRANSMISSION MODULES

¡@

TA-BV011S1A TA-BV012S1 TA-BV112S1A TA-BV113S1A TA-BV511S1A TA-BV1214S1A
TA-BV011S2A TA-BV012S2 TA-BV112S2A TA-BV113S2A TA-BV511S1A TA-BV1214S2A

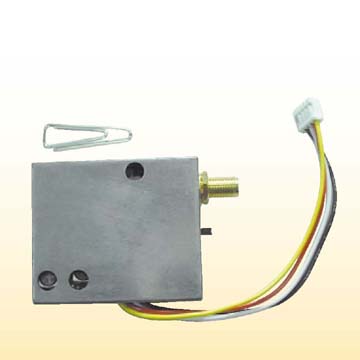

TA-BV011S1A / TA-BV011S2A SHF Audio / Video Message Transmitter ( 1.2GHz / 2.4GHz ), 50mW
TA-BV012S1 / TA-BV012S2 SHF Video Message Transmitter ( 1.2GHz / 2.4GHz ), 75mW

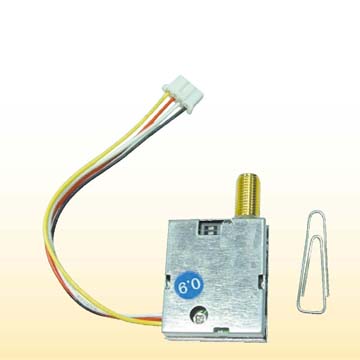

TA-BV112S1A / TA-BV112S2A SHF Audio / Video Message Transmitter ( 1.2GHz / 2.4GHz ), 100mW

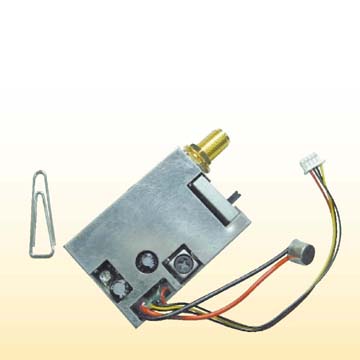

TA-BV113S1A / TA-BV113S2A SHF Audio / Video Message Transmitter ( 1.2GHz / 2.4GHz ), 100mW
TA-BV511S1A / TA-BV511S2A SHF Audio / Video Message Transmitter ( 1.2GHz / 2.4GHz ), 500mW

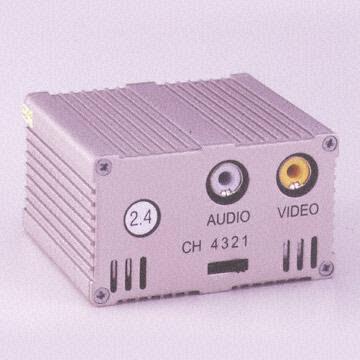

TA-BV1214S1A / TA-BV1214S2A SHF Audio / Video Message Transmitter ( 1.2GHz / 2.4GHz ), 1000mW
¡@

SPECIFICATIONS

 TA-BV011S1A TA-BV012S1 TA-BV112S1A TA-BV113S1A
TA-BV011S2A TA-BV012S2 TA-BV112S2A TA-BV113S2A
ISM Band 1.2GHz/2.4GHz 1.2GHz/2.4GHz 1.2GHz/2.4GHz 1.2GHz/2.4GHz
RF Output Power 50mW 75mW 100mW 100mW
PLL PLL PLL PLL
Audio yes none yes yes
DIMENSION 55 x 45 x 12mm 55 x 30 x 10mm 39.5 x 25 x 9.3mm 41 x 30 x 9mm
WEIGHT 28.5g 20g 10.2g 20g
SPECIFICATIONS TA-BV511S1A TA-BV1214S1A ¡@ ¡@
TA-BV511S2A TA-BV1214S2A ¡@ ¡@
ISM Band 1.2GHz/2.4GHz 1.2GHz/2.4GHz
RF Output Power 500mW 1000mW ¡@ ¡@
PLL PLL
Audio yes yes ¡@ ¡@
DIMENSION 50 x 28 x 8mm 60 x 48 x 35mm
WEIGHT 20g 135g ¡@ ¡@

¡@
