APARTMENT VIDEO INTERCOM SYSTEM

Video Indoorphone
VIDEO INTERCOM ENTRANCE STATION, APARTMENT TYPE
TA-MO131B  Black/White TA-MO231B  Black/White TA-MO331B  Black/White TA-MO431B  Black/White
TA-MO131C  Colored TA-MO231C  Colored TA-MO331C  Colored TA-MO431C  Colored
DIMENSION: 275x190x45mm DIMENSION: 　 DIMENSION:  275x190x45mm DIMENSION:  190x250x40mm
WEIGHT: 710g WEIGHT: 　 WEIGHT: 710g WEIGHT: 720g

◎◎ MODELS ◎◎

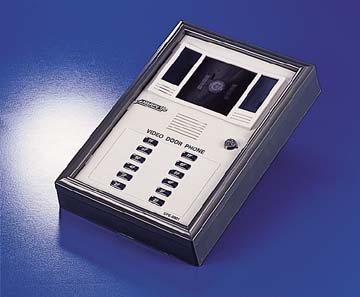

TA-MO131B standard B/W, steel housing, PIR, Standard apartments: 30 ( extendable ); Compatible with TA-MG300, TA-MG300A
TA-MO131C standard Color, steel housing, PIR, Standard apartments: 30 ( extendable ); Compatible withTA-MG300, TA-MG300A

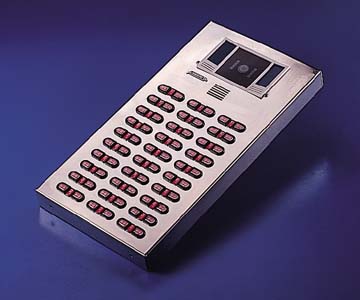

TA-MO231B deluxe B/W, stainless steel housing, PIR, Standard apartments: 30 ( extendable ); Compatible with TA-MG300, TA-MG300A
TA-MO231C deluxe Color, stainless steel housing, PIR, Standard apartments: 30 ( extendable ); Compatible with TA-MG300, TA-MG300A

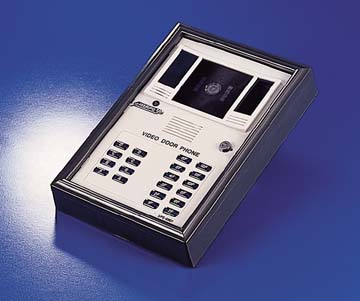

TA-MO331B digital B/W, steel housing, PIR, Standard apartments: 30 ( max. 128 apartments ), compatible with TA-MG1024D.
TA-MO331C digital Color, steel housing, PIR,Standard apartments: 30 ( max. 128 apartments ), compatible with TA-MG1024D

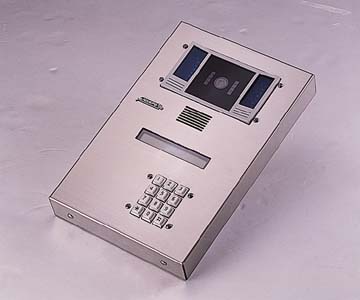

TA-MO431B digital B/W, stainless steel housing, PIR, Max. 2000 apartments, LCD display; Compatible with TA-MG9999D
TA-MO431C digital Color, stainless steel housing, PIR, Max. 2000 apartments, LCD display; Compatible with TA-MG9999D

◎◎ FEATURES & SPECIFICATIONS ◎◎

1/3" CCD with automatic focal distance adjustment.

Wide Angle Camera ( 145°) with high resolution ; Can watch every corner in front of the door.

4" screen can display the visitor's picture.

The auxiliary light can compensate the insufficient illustration.

PIR device activated by pushing button.

Minimum illustration at 0.5 LUX.

Auto power-off standby for next visitor after 60 seconds ( programmable ).

Metal cover. durable, distortion-free, water-proof, fire-proof.

2-way intercom with indoor phones.

Wall mounted design, fastened by screws. No hole, dig needed.

Video Indoorphone
VIDEO INTERCOM INDOOR STATION, APARTMENT TYPE
　 　
TA-MI231B Black/White TA-MI331B Black/White
TA-MI231C Colored
DIMENSION: 250x210x90mm DIMENSION: 250x210x90mm

◎◎ MODELS ◎◎

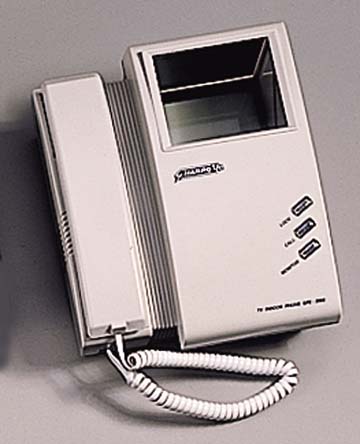

TA-MI231B 4.0" B/W CRT monitor, ABS housing,
TA-MI231C 4.5" TFT Color monitor, ABS housing,

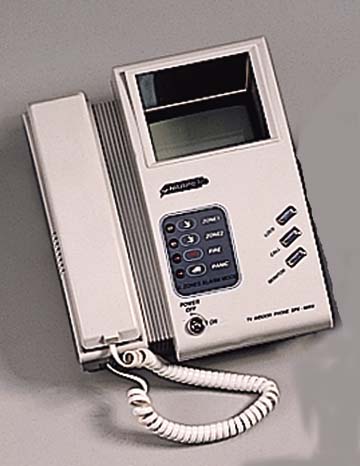

TA-MI331B 4.0" B/W CRT monitor, ABS housing, 4-zone burglar alarm
TA-MI331C 4.5" TFT Color monitor, ABS housing, 4-zone burglar alarm

◎◎ FUNCTIONS ◎◎

Can monitor the outdoor situation via the Outdoorphone ( simply picking up the handset ).

Electronic Music Ringer.

Lock button ( with light ): to open the door.

Call button ( with light ): to call the Outdoorphone and Central Guard Station.

Handsfree Monitor button ( with light ):

2-way paging with the Central Guard Station and the Outdoorphone.

2-way intercom with the Central Guard Station.

The alarmed type (TA-MI331 B & TA-MI331C) can be connected with alarm systems such as PIR

        sensor, in 4 zones and the fire detecting device.

Adjustable screen contrast control.

Adjustable screen vertical hold control.

Adjustable screen vertical height.

Adjustable screen horizontal hold control.

Adjustable ringer volume control.
        Wall mounted design, fastened by screws. No hole, dig needed.

Centralguard

CENTRAL GUARD STATION
　

◎◎ MODELS ◎◎
　
TA-MG300 One-by-one push button type; Max. 300 apartments;.Compatible with TA-MO131B, TA-MO131C, TA-MO231B, TA-MO231C
TA-MG300A One-by-one push button type with Alarm system; Max. 300 apartments; Compatible with TA-MO131B, TA-MO131C, TA-MO231B, TA-MO231C
TA-MG1024D Digital push button; Max. 1024 apartments; 4-digit LED display; Compatible with TA-MO331B, TA-MO331C
TA-MG9999D Digital push button; Max. 9999 apartments; LCD display; Compatible with TA-MO431B, TA-MO431C
　

◎◎ FUNCTIONS ◎◎
　

2-way paging with Indoorphones.

2-way intercom with Indoorphones.

Lock button: to open the gate or door.

Electronic Music Ringer.
　
DIMENSION: 95mm x 87mm x 44mm
WEIGHT:  120g

ACCESSORIES

　 　
MODEL: TA-MK104           Digital Interface Card MODEL:  TA-MK108

◎◎ FUNCTION ◎◎

◎◎ FUNCTION ◎◎
Used for digital intercom system ( TA-MO331B, TA-MO331C & TA-MG1024D ); Each unit can be connected to 4 indoorphones Used for digital intercom system ( TA-MO431B, TA-MO431C & TA-MG9999D );  Each unit can be connected to 8 indoor phones.
DIMENSION: 110mm x 160mm x 35mm DIMENSION: 110mm x 160mm x 35mm
WEIGHT:  19 0g WEIGHT:  190g
