 CEILING
LIGHT
CAMERAS
|
|
| ¡@ |
|
|
|
|
|
|
|
TA-MC543CH |
TA-MC543CHW |
TA-MC543CHF |
TA-MC534CA |
|
TA-MC543CS |
TA-MC543CSW |
TA-MC543CSF |
|
|
 |
|
|
|
|
|
 |
|

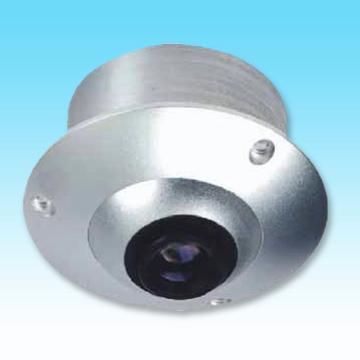

TA-MC543CH / TA-MC543CS |
CCD
Color Ceiling Light Camera |
|

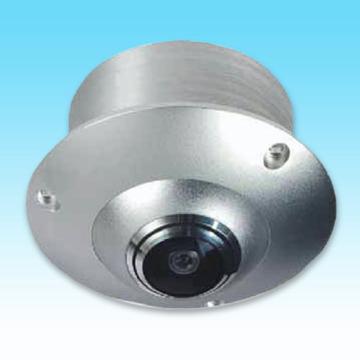

TA-MC543CHW / TA-MC543CW |
Wide Angle CCD Color
Ceiling Light
Camera |
|
TA-MC543CHF / TA-MC543CSF |
Long Distance,
Focal CCD
Color Ceiling Light Camera |
|

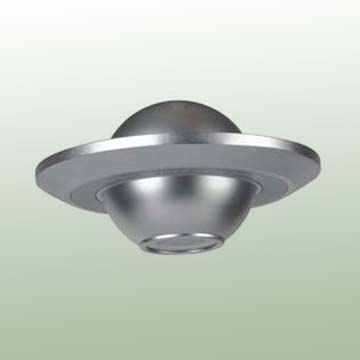

TA-MC534CA |
CCD Color
Ceiling Light Camera |
|
 |
|
|
 |
|
SPECIFICATIONS |
TA-MC543CH |
TA-MC543CHW |
TA-MC543CHF |
TA-MC534CA |
|
TA-MC543CS |
TA-MC543CSW |
TA-MC543CSF |
¡@ |
|
Image Sensor |
1/4"
Hitachi / Sony CCD Color Sensor |
1/4" Hitachi / Sony CCD
Color Sensor |
1/4" Hitachi / Sony CCD
Color Sensor |
1/3" Sharp CCD Color Sensor
|
|
TV system |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
NTSC / PAL |
|
Pixel Array |
|
|
|
|
|
|
|
|
|
Resolution |
420TVL |
420TVL |
420TVL |
420TVL |
|
Auto Shutter Speed |
1/50(1/60)~1/120000sec |
1/50(1/60)~1/120000sec |
1/50(1/60)~1/120000sec |
1/50(1/60)~1/100000sec |
|
S/N Ratio |
18dB |
18dB |
18dB |
48dB |
|
Effective Range |
3.6mm |
1.7mm, 170 degree |
25mm |
3.6mm |
|
White Balance |
Auto, high speed |
Auto, high speed |
Auto, high speed |
Auto, 2800k-8200k |
|
Audio |
none |
none |
none |
none |
|
Housing Material |
aluminum |
aluminum |
aluminum |
plastic |
|
Lowest Luminosity request |
1 Lux at F1.4 |
1 Lux at F1.4 |
1 Lux at F1.4 |
1 Lux at F1.2 |
| ¡@ |
¡@ |
¡@ |
¡@ |
¡@ |
|
DIMENSIONS |
|
|
|
9mm(D) x 60mm(H) |
|
WEIGHT |
¡@ |
¡@ |
¡@ |
¡@ |
|
|
|
¡@ |
 |
|
TRONIC ACE
TECHNOLOGY INC. |
(886 2)22671180
sales@unitone.com.tw |
|
|
 |
|
