 DOME
CAMERAS
|
|
| ¡@ |
|
|
|
|
|
TA-MC442CHV |
TA-MC442CHLV |
|
TA-MC442CSV |
TA-MC442CSLV |
|
 |
|
|
|
 |
|
TA-MC442CHV / TA-MC442CSV |
Vandal Proof CCD
Color Wall Mount Camera |
|

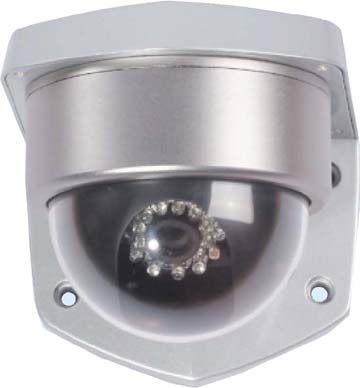

TA-MC442CHLV / TA-MC442CSLV |
Vandal Proof CCD Color
Wall Mount
Camera with 23 Infrared LEDs. |
|
 |
|
|
 |
|
SPECIFICATIONS |
TA-MC442CHV |
TA-MC442CHLV |
|
TA-MC442CSV |
TA-MC442CSLV |
|
Image Sensor |
1/4"
Hitachi / Sony CCD Color Sensor |
1/4" Hitachi / Sony CCD
Color Sensor |
|
TV system |
NTSC / PAL |
NTSC / PAL |
|
Pixel Array |
|
|
|
|
|
Resolution |
420TVL |
420TVL |
|
Auto Shutter Speed |
1/50(1/60)~1/120000sec |
1/50(1/60)~1/120000sec |
|
S/N Ratio |
18dB |
18dB |
|
Effective Range |
3.6mm |
3.6mm |
|
White Balance |
Auto, high speed |
Auto, high speed |
|
Audio |
none |
none |
|
Housing Material |
aluminum |
aluminum |
|
Lowest Luminosity request |
1 Lux |
0 Lux |
| ¡@ |
¡@ |
¡@ |
|
DIMENSIONS |
|
|
|
WEIGHT |
¡@ |
¡@ |
|
|
|
¡@ |
 |
|
