Mobile Booster / Mobile Repeater / GSM Signal Booster / DCS Signal Booster

  Cellbooster

GSM PHONE SIGNAL BOOSTER

TA-CB040/045 TA-CB050 TA-CB065/070/075/ Power Diverter

MODEL SYSTEM EFFECTIVE COVERAGE GAIN
TA-CB40G 900MHz GSM

110 square meters

 40dB
TA-CB45G 900MHz GSM 160 square meters 45dB
TA-CB65G 900MHz GSM 1000 square meters 65dB
TA-CB70G 900MHz GSM 2000 square meters 70dB
TA-CB75G 900MHz GSM 3000 square meters 75dB
TA-CB45D 1800MHz DCS 70 square meters 45dB
TA-CB50D 1800MHz DCS 100 square meters 50dB
TA-CB65D 1800MHz DCS 625 square meters 65dB
TA-CB70D 1800MHz DCS 1250 square meters 70dB
TA-CB75D 1800MHz DCS 1875 square meters 75dB
  • Enhances cellular phone reception both incoming and outgoing signals in small site offices, rooms and other places.
  • Built-in AGC, free of interference.
  • Unique five-color LED level indicator.
  • DIY kit, including main unit, outdoor panel antenna with bracket, screw, indoor antenna, 15m coaxial cable, power adapter sets.

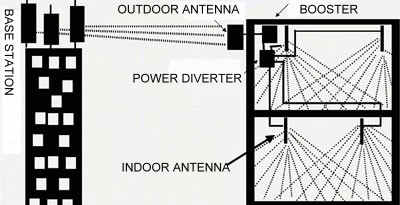

  • Easy installation, just like TV antenna installation.
  • Multi users (up to six persons) are possible.
  • Effective coverage area: 70 to 1875 square meters ( depends on different models and environments ).
  • Reduces cellular phone radiation.
  • Extends the life of a cellular phone battery.
  • 50/75-ohm coaxial cable compatible.
  • Frequency range: GSM uplink 890 - 915MHz / downlink 935MHz to 960MHz; DCS uplink 1710 - 1785MHz / downlink 1805 - 1885MHz.
  • Bandwidth: GSM 25MHz; DCS 75MHz.
  • Gain: uplink 40dB/downlink 40dB nominal, uplink for TA-CB040; 45dB/downlink 45dB for TA-CB045.
  • Gain variation over frequency and temperature: +/-3dB.
  • Noise figure: uplink 8.0dB/downlink 8.0dB.
  • OICP-3: uplink 34dBm/downlink 20dBm.
  • P1dB: uplink 26dBm/downlink 12dBm.
  • V.S.W.R: 2.0:1.
  • RF power output: uplink 17dBm/downlink 3dBm.
  • Power supply: 90VAC to 240VAC, 50Hz to 60Hz, 12.2VDC, 1.5A (maximum).
  • Power consumption: 7W.
  • AGC dynamic range: 20dB (typical).
  • Spurious IMD: -20dBm (typical).
  • Level indicator: five-color LED (red, orange, yellow, green, blue).
  • Input level display range: -90dBm to -65dBm.
  • RF connector:
    • Outdoor ANT side: N (female)
    • Indoor ANT side: TNC (female)
  • Housing: aluminum.
  • Installation: wall or ceiling mount or set on the table.
  • Fastening: four screw holes.
  • Operating temperature: -5 to +45 degrees Celsius.
  • Storage temperature: -15 to +50 degrees Celsius.
  • Accessories: bracket, mounting screw set, AC adapter, exterior unidirectional panel antenna, interior omni-directional antenna, 6.15m coaxial cable with pre-installed connectors, additional connectors.
¡@

MODEL NO.

 Length Width Thickness Weight
TA-CB40G/45G/50G 160mm 105mm 38mm 0.5kgs
TA-CB65G/70G/75G 240mm 97mm 41mm 0.9kgs
TA-CB45D/50D 160mm 105mm 38mm 0.5kgs
TA-CB65D/70D/75D 240mm 97mm 41mm 0.9kgs
¡@
